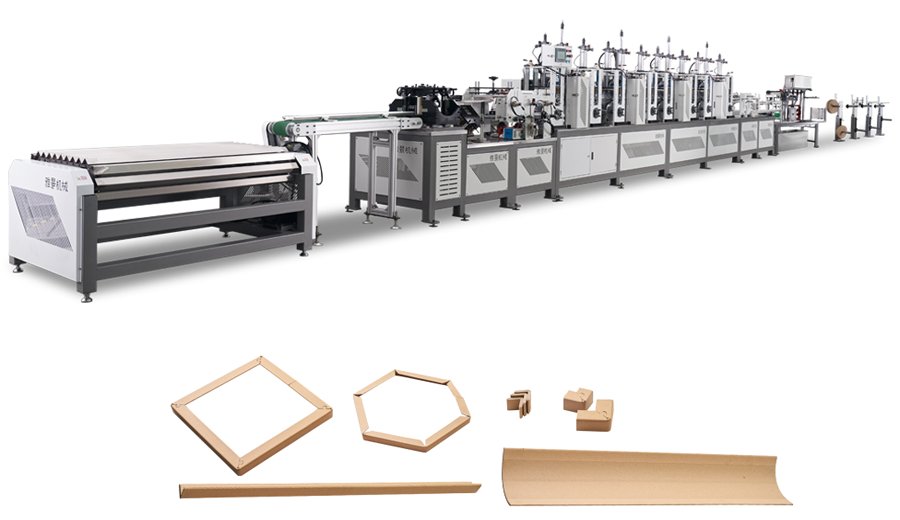

V+C profile paper edge protector machine

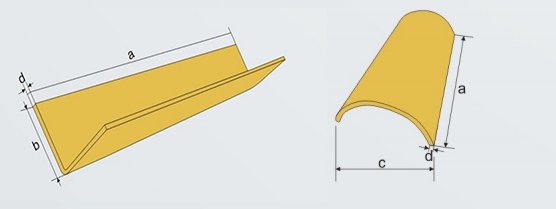

Protector size

V:25-100 mm(can be symmetrical and asymmetrical)

C:100-250mm(can be symmetrical and asymmetrical)

Thickness

V:2-10 mm

C:3-10 mm

Forming roller

V:8 Groups（Customer optional）

C:5 Groups（Customer optional）

Applicable inner paper

360-600 gsm bobbin fiber paper

Applicable surface paper

175-250 gsm kraft paper

Core diameter of paper reel

3”(76mm) ( 4”or other sizes possible)

Max. quantity of layer

11, including 1 surface paper, or upon customer demand

Normal. speed

V:40 m/min
C:30 m/min

Applicable paper reel diameter

Max. 1300 mm

Cutting method

Servo cutting

Min. cutting length

50 mm

Cutting tolerance

±1 mm

Power supply

16KW, 380V, 50Hz, 3 phase

Air supply

0.6Mpa, 0.2m3/min

Total weight

About 5 tons

Dimension

40*1.5*2 m

Servo drive

Delta/Taiwan

Touch panel

Delta/Taiwan

PLC

Delta/Taiwan

Proximity switch

Omron/ Japan

Motor

ShanJie/ JiangSheng/ China

Reducer

HaiBao/ China

Inverter

Delta/ Taiwan

Contactor

Chint/ China
