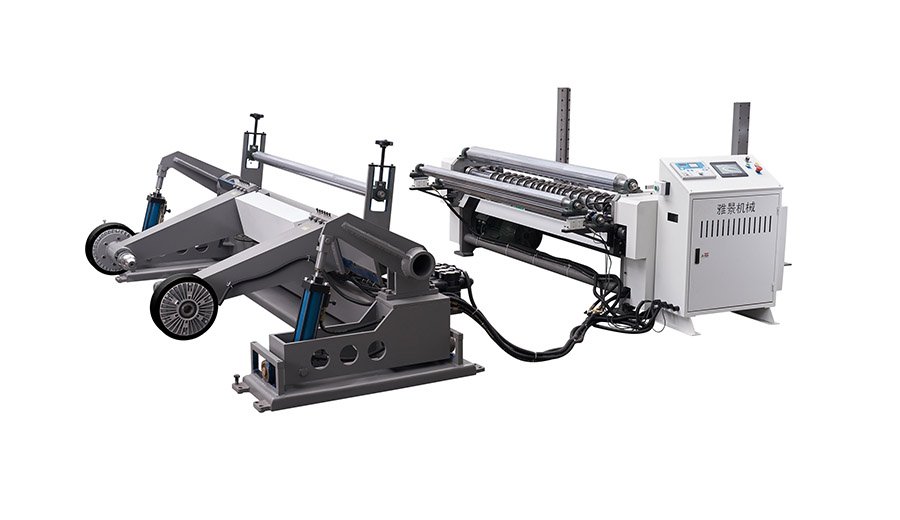

YJ-S200-AX Kraft Paper Slitter And Rewinder

Dimension

3.8*2.1*1.5m

Weight

3500kg

Function

Slitter and rewinder

Max paper roll diameter

1800mm

Paper roll width

800-1600mm

Jumbo paper core

3/4/6 inch（customization）

Winding  diameter

3/4inch（customization）

Min slitting width

30mm

Applicable raw paper

60-600gsm

Paper stand

Shaftless hydraulic paper loading rack. Max  2.5 ton

Power

10Kw

Voltage

380V

Blades

25sets

Blades adjusting device

Automatic

Speed

0-200m/min

Cutting precision

±0.1mm

Brake system

Magnetic powder brake, and automatic tension control system

Control system

Mitsubishi PLC &visual interface
