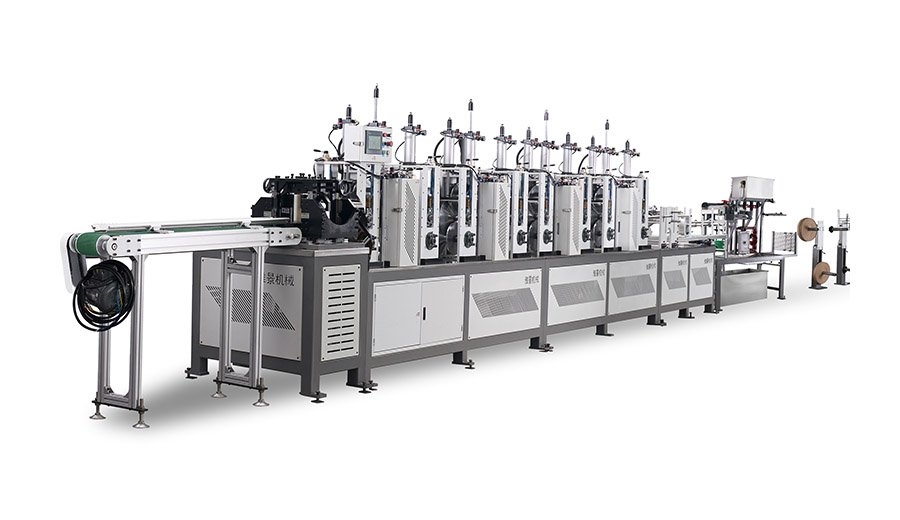

YJ-S30-U U Profile Paper Edge Protector Machine

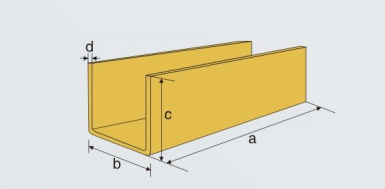

U protector size

Width：20-100 mm
Height：20-60 mm

U Thickness

2-6 mm

Applicable inner   paper

360-600 gsm bobbin fiber paper

Applicable surface   paper

175-250 gsm kraft paper

Core diameter of   paper reel

3”(76mm) ( 4”or other sizes possible)

Max. quantity of   layer

11, including 1 surface paper, or upon customer demand

Max. speed

30 m/min

Applicable paper reel diameter

Max. 1300 mm

Cutting method

Servo cutting

Min. cutting length

50 mm

Cutting tolerance

±0.5 mm

Power supply

17.5KW, 380V, 50Hz, 3 phase

Air supply

0.6Mpa, 0.2m3/min

Total weight

About 4.5 tons

Dimension
