YJ-S60-VF V+Flat Board Paper Edge Protector Machine

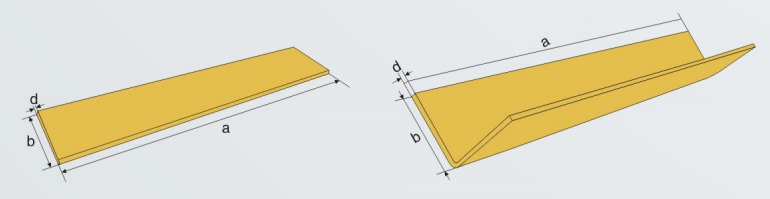

V protector size

25-100 mm(can be symmetrical and asymmetrical)

V Thickness

1-10 mm

Flat size

50-180 mm

Flat thickness

3-15 mm

Applicable inner paper

360-600 gsm bobbin fiber paper

Applicable surface paper

175-250 gsm kraft paper

Core diameter of paper reel

3”(76mm) ( 4”or other sizes possible)

Max. quantity of layer

11, including 1 surface paper, or upon customer demand

Max. speed

V shape：40 m/min

Flat：60 m/min

Applicable paper reel diameter

Max. 1300 mm

Cutting method

Servo cutting

Min. cutting length

50 mm

Cutting tolerance

±0.5 mm

Power supply

17.5KW, 380V, 50Hz, 3 phase

Air supply

0.6Mpa, 0.2m3/min

Total weight

About 5 tons

Dimension

30*1.5*2 m
